Shogun 7 embraces the high production values of RAW and 4K HDR to give you complete control of every aspect of your production, on-set and in post. Meticulously monitor every pixel of SDR or HDR as it’s captured. Record up to 5.7K Apple ProRes RAW* or 4K Apple ProRes.
Amplify the advantages of shooting RAW
Shogun 7 takes RAW data directly from the camera’s sensor and preserves the unprocessed image. This gives you more freedom to adjust and finesse every aspect of your video in post-production finishing. Applying ProRes compression technology to RAW image data adds another edge to your creative workflow. ProRes RAW files are smaller than most proprietary RAW formats so you can import, edit and grade faster and more efficiently.
Perfect exposure and colour
A high-quality viewing experience gives you complete confidence to make educated on-set decisions.
With Shogun 7’s dynamic zoned backlight, blacks are deeper, whites are brighter, and the details of highlights are crystal clear. Shogun 7 gives you the control to maximise HDR exposure, while feeling comfortable with SDR finishing in post.
Simple monitoring tools put every detail of the image within your control. From custom 3D LUTs, false color profiles, adjustable focus peaking and movable 1:1 and 2:1 pixel magnification. In addition, RGB parade and vectorscopes ensure perfect colors on your calibrated monitor.

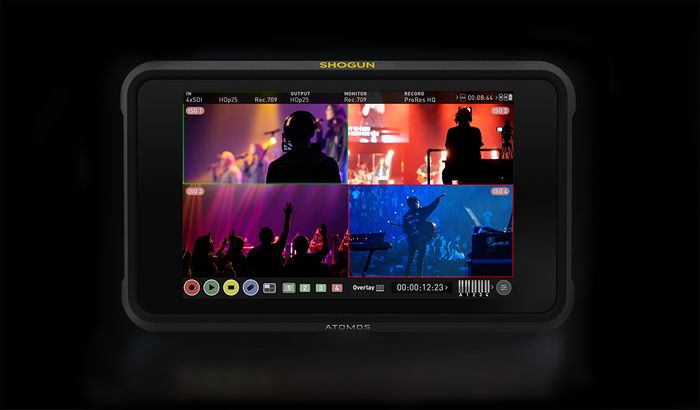

Multi-camera touchscreen switching
Take full advantage of 4 x SDI inputs and let Shogun 7 step into the role of a portable, quadview live switcher and recorder on your multi-camera shoots. Record up to four 1080p60 streams simultaneously as separate ISOs while cueing and switching in real-time with a simple touch of the screen. Shogun 7 allows user to record a fifth ‘program’ channel of your switched feed. Display the resulting mixed output (via HDMI or SDI) live on set. You can even output the switched feed for live streaming. Switching is completely asynchronous, eliminating the need for expensive locked sources and allowing the use of more affordable cameras.
With its ProRes RAW recording capabilities it works with powerhouses like the Canon C300 mkII, Panasonic EVA 1 and Sony FS5 II to create stunning images with maximum detail and latitude for post production. In addition it can transform older cameras like the Sony FS700R into cinematic RAW shooting machines with advanced features like 4Kp60 and 2Kp240 RAW capture.
Use with your DSLR or mirrorless camera via HDMI to get up to 4Kp60 Apple ProRes and AVID DNx codecs for easy editing and archival quality. Add it to a high-end ARRI, RED or Sony Venice and you’ll get accurate HDR monitoring and all the tools you need to get your job done.
